Loop Vehicle Detector

LD170 Single-Channel Loop Detector

A compact, field-proven detector designed for dependable vehicle sensing in parking, access, toll, and gate control applications.

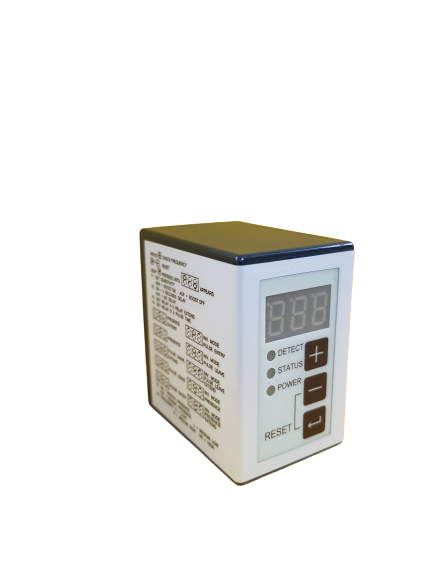

LD170 single-channel loop detector

Professional Detection Performance for Daily Operation

The LD170 is built for installers and operators who need stable vehicle detection, clear diagnostics, and flexible output logic in a compact housing. Its LED display and field-adjustable settings help speed up commissioning and troubleshooting on site.

1
Reliable Sensing

Stable performance for parking, gate, toll, and access applications.

2
Clear Diagnostics

3-digit LED display supports fast setup and easier fault identification.

3
Flexible Outputs

Presence, pulse-on-entry, pulse-on-exit, and selectable pulse timing.

4
Field Friendly

Self-tuning and automatic recovery reduce maintenance time.

Key Features

  • Single-channel inductive loop detector with compact housing.
  • 3-digit, seven-segment LED display for direct loop and status diagnostics.
  • Loop frequency can be read directly from the display.
  • Self-tuning and environmental tracking for dependable long-term operation.
  • Automatic recovery after intermittent loop faults or self-healed loop conditions.
  • Normal and inverse modes selectable in the field.
  • Three LED indicators for detect, power, loop fault, and relay status.
  • ABS enclosure with optional IP65-rated protection.

Typical Applications

  • Parking entry and exit control
  • Barrier gate and fence systems
  • Access control systems
  • Toll and traffic control systems

Output Configuration

Output A is a presence output with extension from 0 to 31 seconds over 30 levels.

Output B is programmable for presence, pulse on entry, pulse on exit, and four selectable pulse-time settings.

Technical Specifications

Operating Voltage12-24V AC/DC or 110-230V AC
Power Consumption< 2W
Relay Output5A / 48V, 10A / 110V
Loop Inductance Range20-2000uH
Loop Frequency20-100kHz
Sensitivity0.01% deltaL
Response Time20ms
Detection ModesPresence, pulse on entry, pulse on exit
Housing MaterialABS plastic
Protection RatingIP65
Connector11-pin Amphenol
Operating Temperature-20 C to +80 C
Dimensions / WeightPlease contact PSM for the complete dimensional drawing and shipment data.

Need More Technical Details?

Download the catalogue or contact our team for project advice and full installation support.
